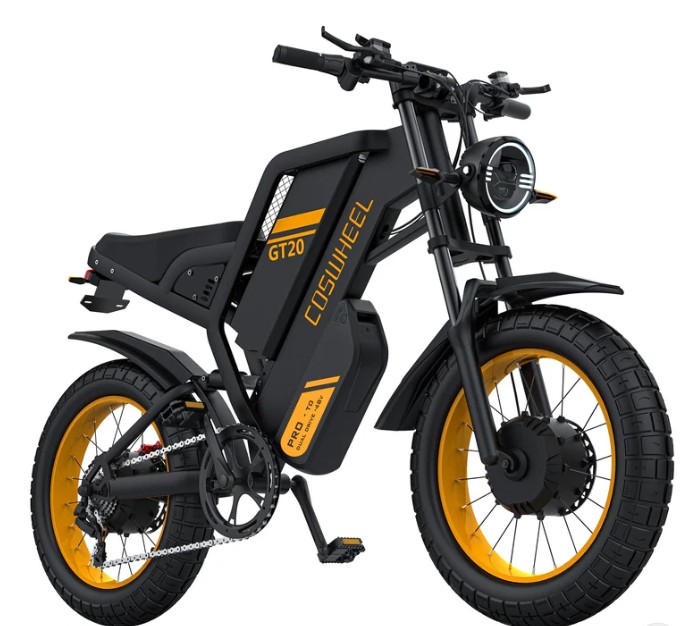

GT20 PRO Specifications
- Top Speed: Class 2/3, 31 Mph (50Km/h)
- Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 3000W( Peak 1500W+1500W) (Rated 1000W+1000W) Brushless Rear Hub Motor 160N.m
- Battery: 48V 25Ah+15Ah Battery (Lithium 18650 Cells)
- Energy: 1920Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Thumb Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)

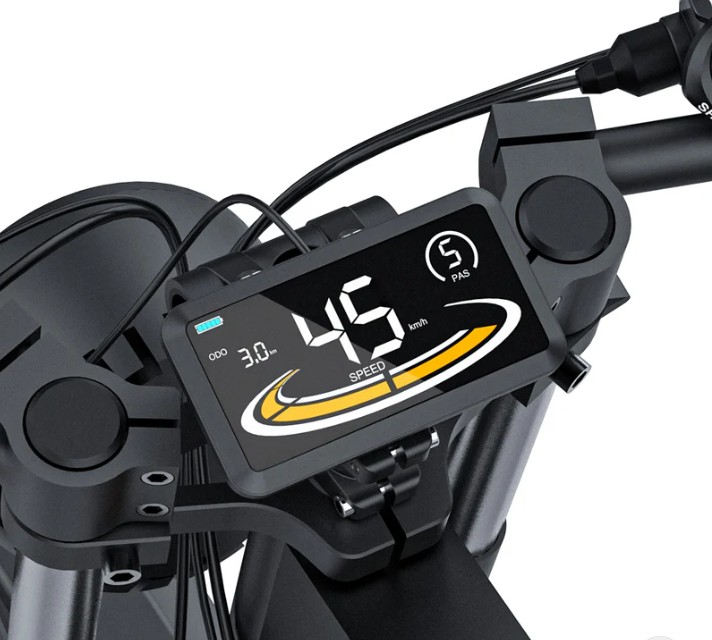

4" LCD Color Display
GT20 PRO has a 4" high-brightness color LCD display that is clearly visible under the sun and has an IP66 waterproof rating, making it safe from wind and rain. Below the display, there is also a Type-C discharge port, allowing you to continuously charge your phone while riding to ensure riding safety.
Rich Switch Functions
In addition to the start button, gear up and down buttons, menu button and headlight button, the switch can also operate the front and rear wheel motor working mode. Press and hold the top "+" button for a few seconds to switch the rear wheel motor to work or the front and rear wheels to work together. Please note that there will be a time difference when the front and rear wheels work together, which is to obtain better grip and acceleration.
Removable Battery
Both batteries (25AH and 15AH) are removable and equipped with key switches. The batteries have heat-insulating protective coatings inside to ensure safety. It is recommended to wait for a while after riding to wait for the internal electrons of the battery to stabilize before charging. It is safer to charge outdoors.

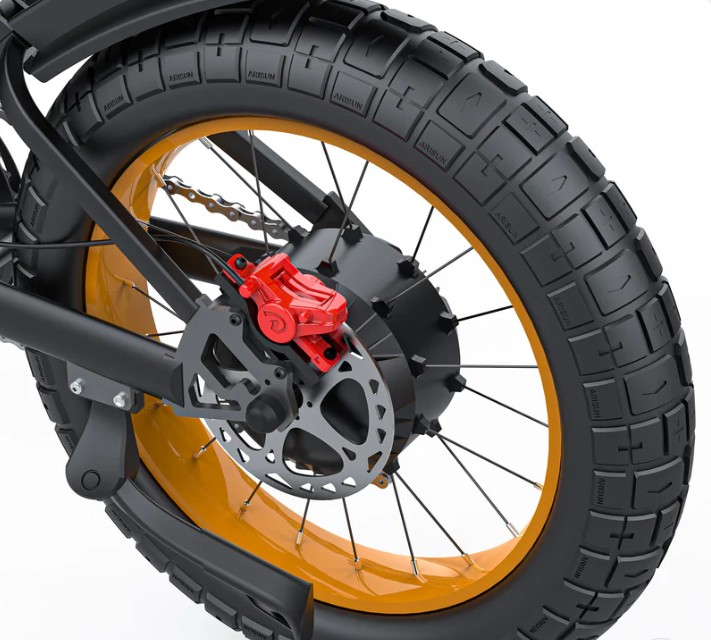

Dual Piston Hydraulic Brake
The GT20 PRO front and rear wheels are equipped with heavy-duty dual-piston hydraulic brakes, 180MM brake discs, and short braking distance. Plus 20"*4" all-terrain tires, it has strong road passability.
180mm Rear Suspension
The rear suspension has 850 pounds, 180mm of suspension travel, and 3 hole adjustments to adjust the seat height of the entire GT20 PRO, suitable for riders with heights from 5'1" - 6'5".
Rust-proof Chain
The latest anti-rust chain is used, so you don't have to worry about rain when riding. The double chain cover crank design reduces the phenomenon of the chain falling off after riding for too long.
